LT5C Rewinders & Accessories

Medium / High
5.12" (130.0mm)
LT5C

Optimize your label printing workflow

Designed specifically for the LT5C, these accessories provide options for improved workflow and efficiency. Industrial design and heavy-duty construction makes these items perfect for high volume jobs.

  • Label Rewinder
  • Inline Slitter
  • Offline Slitter & Matrix Remover

LT5C Rewinders & Accessories Details

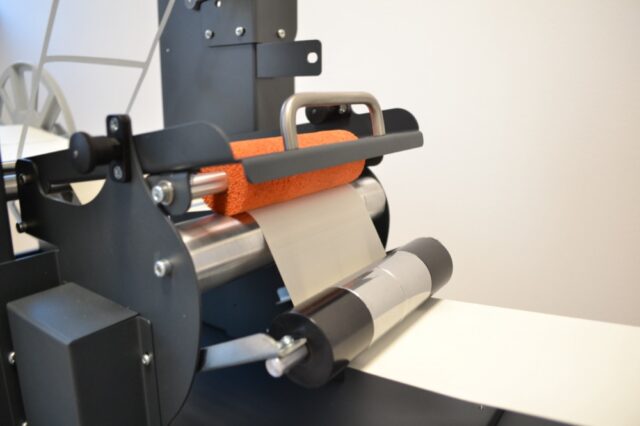

LT5C Label Rewinder

Rewind printed output from your LT5C onto 3-inch cores. Speed is automatically synchronized by the tension arm and alignment is maintained by a steel connection plate for tight, consistent rolls.

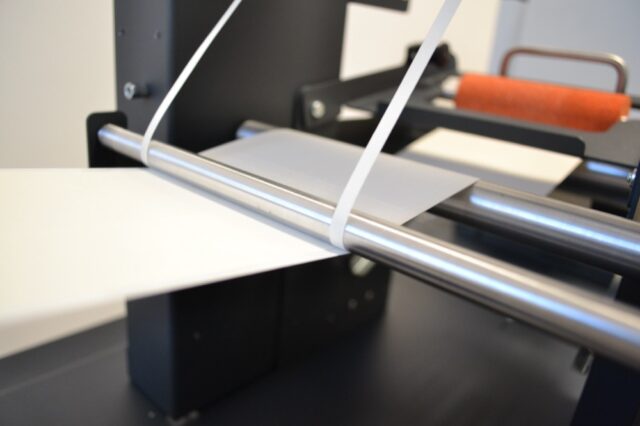

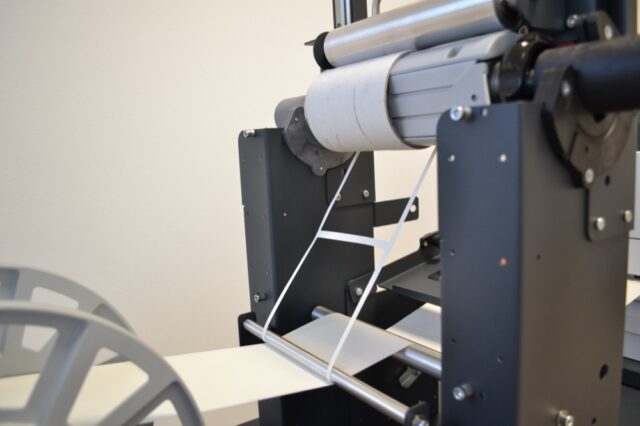

LT5C Inline Matrix Remover

Create perfect edge-to-edge (full bleed) labels by printing over the cut edge of pre-die-cut labels. Removing the waste matrix in as the labels exit the printer provides optimal efficiency. A connection plate and tension arm ensures roll tightness and consistency.


Afinia Label LT5C offline slitter and matrix remover rewinder

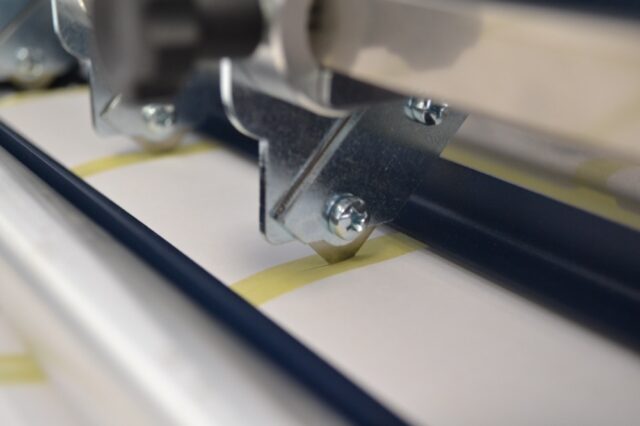

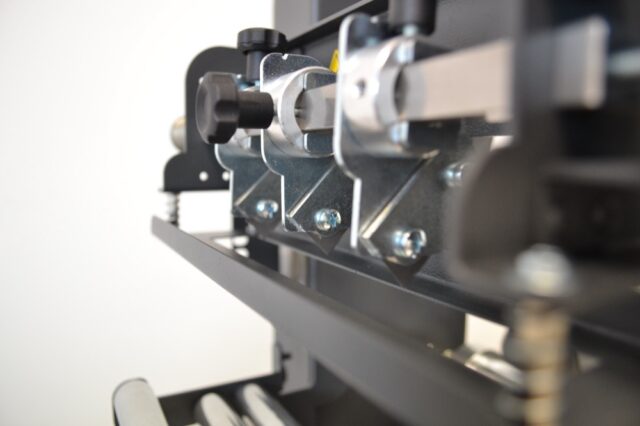

LT5C Offline Slitter and Matrix Remover

This offline rewinder is perfect full bleed labels that need to be slit down to separate narrow rolls. Printed rolls are placed here for waste matrix removal and slitting. Slitting blade positions are easily adjusted for accurate and tight finished rolls.

Specifications

LT5C Label Rewiner:

Outer roll diameter:Up to 9.84 inches (250 mm)
Media width:Up to 6.7 inches (170 mm)
Core holder:3 inch (76 mm)
Power supply:External auto-switching 100/240VAC - 2.5A at 24V

LT5C Matrix Remover (Inline):

Outer roll diameter:Up to 9.84 inches (250 mm)
Media width:Up to 6.7 inches (170 mm)
Core holder:3 inch (76 mm)
Power supply:External auto-switching 100/240VAC - 2.5A at 24V

LT5C Slitter and Matrix Remover (Offline):

Outer roll diameter:Up to 7.87 inches (200 mm)
Media width:Up to 6.7 inches (170 mm)
Core holder:3 inch (76 mm)
Power supply:External auto-switching 100/240VAC - 2.5A at 24V
Slitter blades:Up to 6 (3 blades included)
Minimum slitting width:0.75 inches (19 mm)
