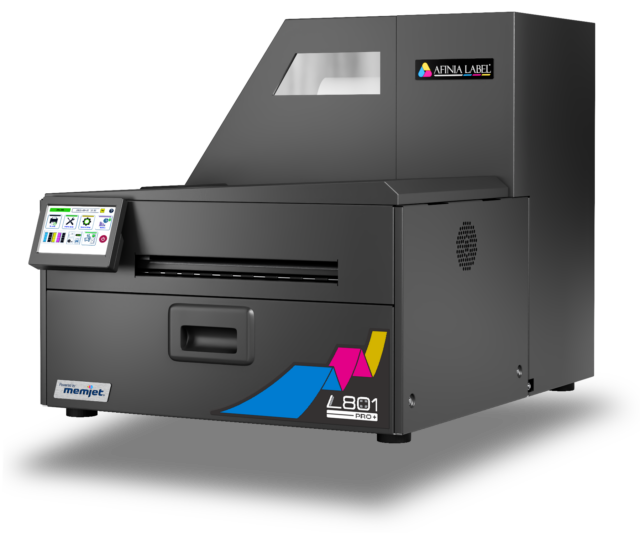

L801 Pro Commercial Color Label Printer
*Price does not include a compatible rewinder
Top Uses & Applications
Professional Print Quality at High Speeds
Proven Memjet performance with more operator control
The L801 Pro is a Memjet-powered commercial color label printer for short- to medium-length primary and secondary label runs. It prints continuous or die-cut media from 2 to 8.5 inches wide at speeds up to 60 feet per minute. A 5-inch integrated touchscreen gives operators direct access to stored jobs, thumbnail previews, printer information, and maintenance features.
Resolution up to 1600 × 1600 dpi produces sharp text and barcodes, detailed graphics, and rich color. Five 250 mL CMYKK cartridges provide 1.25 liters of total ink capacity for longer production runs and low ink costs per label.
- High-volume printing
- Print speeds up to 12 IPS
- 5-inch integrated touchscreen
- Store and recall up to 30 print jobs
- Low ink costs
Minimize ongoing ink costs
Cost per label can be as important as printer cost when investing in a label printer. The L801 Pro helps minimize ongoing costs with efficient ink use and 1.25 liters of onboard ink capacity. Easy-access doors simplify media and ink replacement, while an optional powered rewinder supports roll-to-roll production.
Integrated Unwinder
The L801 Pro includes an integrated unwinder that accepts rolls up to 8 inches (203 mm) in outside diameter. Its steel cover helps protect media from dust and debris, and the unwinder feeds roll media consistently into the printer.
Touchscreen control and job storage
The 5-inch integrated touchscreen provides direct access to printer status, print information, stored jobs, and maintenance features. Operators can store and recall up to 30 print jobs, with thumbnail previews that make jobs easier to identify.
Easier maintenance access
Improved access to the rollers makes routine cleaning and maintenance more convenient.
Roll-to-roll label printing
A compatible rewinder allows the L801 Pro to produce finished rolls continuously. It handles label media up to 8.5 inches wide and rolls up to 8 inches in outside diameter, with face-in or face-out winding.
Memjet Waterfall Technology
The L801 Pro uses Memjet Waterfall Printhead Technology to produce full-color labels at speeds up to 60 ft/min (18 m/min). The stationary, page-wide printhead allows media to move quickly through the printer while maintaining detailed print quality.
High quality & resolution
Print resolution up to 1600 × 1600 dpi supports crisp text and barcodes, detailed graphics, and vivid color. The CMYKK ink configuration includes two black cartridges for additional capacity, strong contrast, and rich blacks.
Low cost of ownership
The L801 Pro combines high print speed, large ink capacity, and low ink costs for economical in-house label production. Request a printed sample and ink-cost analysis to evaluate print quality, material compatibility, and estimated cost per label.
Printer | |
|---|---|
| Print method | Memjet Waterfall Printhead Technology®; 11 integrated circuit chips with 70,400 nozzles |
| Inks | Dye-based CMYKK; five 250 mL cartridges, including two black cartridges (1.25 L total). |
| Print resolution | Up to 1600 × 1600 dpi |
| Print speed | 6 in/sec (152 mm/sec) at 1600 × 1600 dpi; 12 in/sec (305 mm/sec) at 1600 × 800 dpi. Maximum speed: 60 ft/min (18 m/min) |
| Maximum print width | 8.5" (216 mm) |
| Cutter/sheeter | Built-in powered cutter |
| Operator interface | 5" integrated touchscreen with access to stored jobs, print information, and maintenance features |
| Job storage | Onboard storage for recalling up to 30 print jobs from the touchscreen |
Media | |
| Media/label size | Width: 2"–8.5" (50.8–216 mm); length: 2"–48" (50.8–1220 mm) |
| Media thickness | 0.1–0.3 mm (0.0039"–0.0118"), including liner |
| Core diameter | 3" (76.2 mm) cardboard core |
| Maximum roll outside diameter | 8" (203 mm) |
| Media sensors | Gap, continuous, and black mark |
| Die-cut gap | Minimum: 0.125" (3.0 mm); maximum: 0.3" (8.0 mm) |
| Black mark | 3 mm wide × 25.4 mm long, positioned on the left |
| Substrates | Compatible inkjet-coated paper, polyester, polypropylene, and vinyl label stocks |
General | |
| Interfaces | USB 2.0; Ethernet TCP/IP with manual IP configuration or DHCP; GPIO available for external device control |
| Operating systems | Windows 10 and 11, 64-bit (x64). ARM/Snapdragon processors are not supported. |
| 1D barcode printing | Code 39: at least Grade B with a 10 mil bar width |
| 2D barcode printing | PDF417: at least Grade B with a 10 mil cell size |
| Operating environment | 15–35°C (59–95°F); 20–80% relative humidity |
| Overall dimensions — printer only | 18.7" W × 23" D × 19.2" H (475 W × 584 D × 488 H mm) |
| Weight — printer only | 83 lb (37.6 kg) |
| Rated voltage | 110–220 V AC, auto-sensing |
| Warranty | One year |
| Optional accessories | Powered rewinder for roll-to-roll label production |
| Afinia part numbers: | L801 Pro Printer: 44825 Cyan Ink (C): 22467 Magenta Ink (M): 22474 Yellow Ink (Y): 22460 Black Ink (K): 22453 L801 Rewinder: 23125 |
L801 Pro — General
What is the Afinia Label L801 Pro?
Who is the L801 Pro best suited for?
What monthly print volume is the L801 Pro designed for?
What is different about the L801 Pro?
L801 Pro — Print Speed and Quality
How fast does the L801 Pro print?
What is the maximum print resolution?
What is the maximum print width?
Can the L801 Pro print barcodes and variable data?
Can the L801 Pro print white ink?
L801 Pro — Ink and Print Costs
What type of ink does the L801 Pro use?
How much does it cost to print a label?
Are L801 Pro labels water-resistant?
L801 Pro — Media and Finishing
What label materials can the L801 Pro print on?
What media widths and roll sizes does the L801 Pro support?
What label lengths does the L801 Pro support?
Can the L801 Pro print die-cut and continuous labels?
Does the L801 Pro include a cutter?
Can the L801 Pro print roll to roll?
L801 Pro — Software, Connectivity and Maintenance
What software works with the L801 Pro?
What operating systems are supported?
What connectivity options does the L801 Pro offer?
Can print jobs be stored on the printer?
Can the printhead be replaced?
